Using Docker to create Ionic 2 PWA developer environment

I want to create a simple Progressive Web Application (PWA) user registration dialog, which runs on mobile devices, accepts user data and saves them to some backend.

I chose Ionic 2 (ignoring its capabilities to create native apps), because it’s based on Angular 2. It’s like sliced bread. And it uses TypeScript as its (preferred) language. If you’re new to Angular  (as I am), head over to Code School’s Accellerating through Angular 2.

Before installing Ionic 2, you’ll need Node.js because it’s required by Ionic 2.

Node.js

Refusing to infect my MacBook with all sorts of beginner’s (and beta) garbage, I chose to confine my developer environment within a Docker container, avoiding both homebrew and the irreversible native installer as well.

This will give you a virtual environment to take with you, hand over to colleagues, or even publish for anyone to start using within a couple of minutes.

This is not a tutorial. You’ll have to visit the links on your own in order to grasp, what and why you’re doing.  I loosely followed Heitor’s recipe at Getting Started with Docker for the Node.js Developer,  skipping Express in favor of Ionic 2 and ignoring any deprecated (e.g. Boot2Docker) stuff, instead immediately heading over to …

▶︎ Install Docker for Mac, outlined at Getting started: It’s just dragging the Docker app to your applications folder. Windows users should instead head over to Docker for Windows, Linux users to Install Docker Engine on Linux.

Then open Terminal and enter

docker run hello-world

in order to verify your installation and you’ve both, downloaded a public Docker image to your computer, instantiated a container and run a Hello World app.

Sit back for a moment and start figuring out: Docker is like introducing dependency injection into lightweight virtual machines, creating snapshots (i.e. containers) and exporting them as new VMs (i.e. Docker images). And it has an infrastructure to share complete solutions.

▶︎ Consider installing Kitematic, an optional GUI for managing your Docker containers. It’s neither required nor terribly useful, but handy for a Docker novice to visually explore what Docker is all about:Kitematic Screen Shot 2016-07-02 at 07.06.06

▶︎ Install Ubuntu and Node.js. There are a one-stop Debian based Docker images for Node.js, but I followed Heitor’s path, that more closely mimics a real Linux installation and manually installs any required stuff step-by-step.

I’ll later present an automated way to configure your environment. Skip to Introducing Dockerfiles and mounted volumes.

docker pull ubuntu
docker run ubuntu /bin/echo 'Hello World'
docker run -i -t ubuntu

You’ll now be sitting in front of an Ubuntu shell. Try ls -la and install Node.js and npm:

ls -la
apt-get update

# As of 03-jul-16: Ionic is not yet ready for Node.js 6
# see https://github.com/driftyco/ionic-cli/issues/960
apt-get install curl
curl -sL https://deb.nodesource.com/setup_5.x | bash -

apt-get install nodejs
node -v



Ionic 2

▶︎ Install Ionic 2

npm install -g ionic@beta
exit

Now save the container as a new image:

# Get your CONTAINER_ID
docker ps -a

# Save your container as a new image
docker commit -a 'YOUR_NAME <YOUR@EMAIL>' -m 'ionic2 devjump' \
    CONTAINER_ID my-ionic2:0.1
docker tag my-ionic2:0.1 my-ionic2:latest

And immediately shell a new container running your Ionic 2 installation:

docker run -i -t -p 8100:8100 -p 35729:35729 my-ionic2

Create and start your first Ionic 2 app:

ionic start cutePuppyPics sidemenu --v2 --ts ### --ts = TypeScript
cd cutePuppyPics
ionic serve --all ### without the --all Safari wouldn't connect to Ionic



Ionic 2 starting to serve Screen Shot 2016-07-02 at 10.02.11

Now head over to Safari or Chrome and open http://localhost:8100:
First Ionic 2 Screen Chrome Screen Shot 2016-07-02 at 10.54.10

And on the iPad (serving as a personal LTE hotspot):
First Ionic 2 Screen on iPadI IMG_2642
There’s some confusion about whether Docker for Mac is able to publish container ports to networks other than localhost. Using Docker for Mac 1.12.0-rc2-beta17 (build: 9779) and after having added a permissive rule to my Little Snitch in order to account for com.docker.slirp, everything appeared to be fine.

Introducing Dockerfiles and mounted volumes

Full stop! You might be tempted to start designing your app right now – but you shouldn’t! The source for your app is still within a Docker container. Once a container is gone, your sources will be gone as well.

If anything were missing or had to be changed within your Docker image, most probably you would have to start all over, tediously copy-pasting and running all statements again and and again.

We’ll use a Dockerfile to build a new Docker image:

▶︎ Create a new Dockerfile, i.e. from my Gisthub. NB: In favor of the automated build at Docker Hub, this example Dockerfile will not receive any further commits.

Next here is another shortcut: Instead of having to build the image yourself, skip to Let Docker Hub create your Docker image.

▶︎ Create a new Docker image

NB: We’ll pipe the bare Dockerfile into the build in order to prevent any context, i.e. stray files to be included as well.

docker build -t my-ionic2:0.2 -t my-ionic2:latest - > Dockerfile

If you’re too lazy to create the Dockerfile yourself, you can use mine (the one shown above) as-is instead:

docker build -t my-ionic2:0.2 \
    -t my-ionic2:latest https://git.io/vKf3j



▶︎ Now run this image in new container, mounting /projects from your hosts file system and opening standard ports for Ionic development. NB: Always use absolute host paths as shown in this example. Otherwise Docker might misinterpret them as volume names. See Manage data in containers. With Docker for Mac, you may not be able to share arbitrary host paths: “You can share files in /Users, /Volumes, /private, and /tmp directly.”.

docker run --name my-ionic2 -it -p 8100:8100 -p 35729:35729 \
    -v /Users/rsaddey/Documents/Dockers/projects/:/projects \
    my-ionic2

In order to avoid containers piling up or having to remove them manually, you may pass --rm to remove the container once its shell has exited. I prefer to re-use the same container instead, as long as it’s not kaputt:

▶︎ Re-use container, preserving ports, mounted /projects and your shell history

docker start -ai my-ionic2



Let Docker Hub create your Docker image

Once you’ve prepared a Dockerfile, you may chose to host it at Github (or Bitbucket) and have Docker Hub run the build, e.g. on every push. See Automated Builds on Docker Hub.

In short:

  1. Create a Github repo for the Dockerfile, e.g. https://github.com/rsaddey/jump-ionic2
  2. Create an automated build on Docker Hub, e.g. https://hub.docker.com/r/rsaddey/jump-ionic2/

Then use the image(s) to create your Docker containers:

docker run --name jump-ionic2 -it -p 8100:8100 -p 35729:35729 \
    -v /Users/rsaddey/Documents/Dockers/projects/:/projects \
    rsaddey/jump-ionic2

Again, once the container has stopped, you may continue where you left off:

docker start -ai jump-ionic2

and resume using it …

ionic start myFirstIonic2App sidemenu --v2 --ts
cd myFirstIonic2App
ionic serve --all

… by navigating to http://localhost:8100/ on your host:

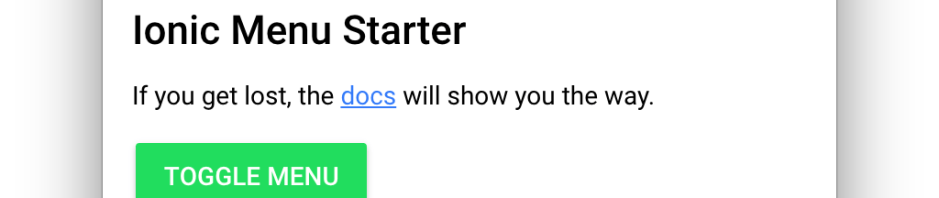

Second Ionic 2 Chrome Screen Shot 2016-07-03 at 14.33.20

Need a second shell to the same container?

docker exec -it jump-ionic2 bash

About Reiner

Born 1954 in Ratisbon (Bavaria, Germany), in 1976 punched cards at Berlin Technical University, caught hacking one of its mainframes by Horst Zuse (son of Konrad Zuse), started studying computer science and soon was offered a job whithin their computer department doing systems programming for IBM VM/370. While studying, jobbed around Germany at various places doing all sorts of things, then returned to Berlin to work at SRZ (computer aided typesetting). Never finished my master degree, but chose to take up self-employed work (which didn't turn me rich nor famous). Now working for a mid-sized software company within a very promising department as head of server software development.
This entry was posted in Angular.js, Computers, Docker, English, Ionic, Mac OS X. Bookmark the permalink.

3 Responses to Using Docker to create Ionic 2 PWA developer environment

  1. Reiner says:

    The VOLUME statement turned out to cause much more harm than good, as an innocent user might expect docker run –rm without explicitly mapping /projects to remove the volume after the container has been removed.

    Docker however will NOT remove the volume, causing orphaned volumes to pile up, in turn causing disk space problems, especially for docker VMs with limited disk space, i.e. Windows and macOS using Virtualbox.

    Orphaned volumes have to manually removed. See http://stackoverflow.com/questions/27812807/orphaned-docker-mounted-host-volumes

    Like

  2. Shon says:

    Hi,I have a question, If edit project files. How to let your project auto to rebuild? Thanks !

    Like

  3. lukekedz says:

    Is it possible to use this setup and run the container without -it? I have tried many different combos… I can only launch & run the ng2/ionic application with interactive shell running… I’d like to have it up and running and tucked away (-d) ….

    Like
